IN THE BOX
- 1�- Magewell Eco Capture Dual SDI M.2
- Connector cable (as supplied by Magewell)
- Quick start guide
Two SDI Capture Channels in M.2 Form Factor

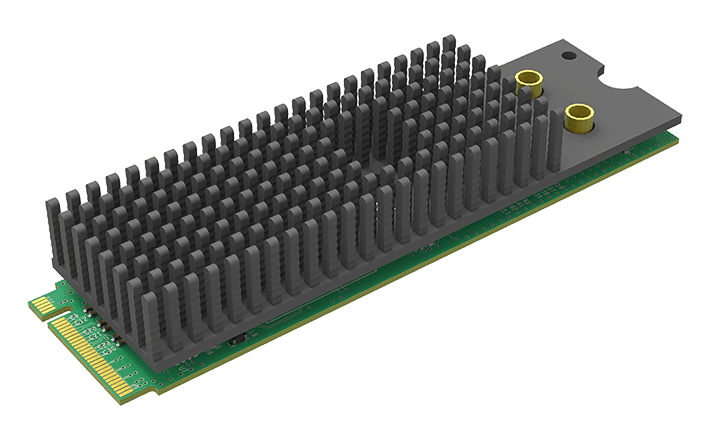

The Magewell Eco Capture Dual SDI M.2 captures two independent SDI channels simultaneously via an M.2 slot on the motherboard. Each channel supports SD-SDI, HD-SDI, and 3G-SDI up to 1080p60, and each is processed by dedicated FPGA hardware. At £276, it is the dual SDI option in Magewell's M.2 capture range: professional SDI ingest in compact and PCIe-constrained systems where a standard PCIe SDI capture card cannot physically fit.
SDI Capture Without a PCIe Slot
Fitting an SDI capture card into a compact server, a small rack unit, or an embedded system has traditionally meant occupying a PCIe slot and accommodating the physical dimensions of a PCIe card. Compact rack servers with small form factor motherboards often have fewer PCIe slots than their larger counterparts, and some embedded systems have none at all. The Eco Capture Dual SDI M.2 installs into an M.2 slot: the same connector used for NVMe SSDs. The physical card is the size of an NVMe SSD drive. Installation requires no bracket, no slot cover: insert at an angle, press flat, secure with a single retaining screw. The entire card sits flat on the motherboard.
What It Captures
Both channels support SD-SDI, HD-SDI, and 3G-SDI independently and simultaneously. The channels operate from separate sources without sharing any processing resources. FPGA processing on the card handles signal conversion, deinterlacing, and scaling per channel. Both channels present as independent capture devices to the host operating system and production software.
Who This Card Is For
- Broadcast engineers deploying SDI capture in rack servers with limited PCIe availability but available M.2 slots
- AV integrators building SDI ingest into compact systems where PCIe card dimensions make installation impractical
- Teams running dual SDI sources in embedded or small form factor systems that have no PCIe expansion
- Organisations that need to add dual SDI capture to systems where PCIe slots are already allocated to GPU, RAID, or networking hardware
How It Compares to Other Eco Capture SDI M.2 Cards
The Eco Capture Quad SDI M.2 (£539) provides four SDI channels in the same M.2 form factor, at roughly double the price: four channels rather than two, from one M.2 slot. For two channels, the Dual SDI M.2 at £276 is the efficient choice. The Eco Capture SDI 4K Plus M.2 (£570) provides a single SDI channel with 12G-SDI support and 4K capture. If 4K SDI capture is required rather than dual HD SDI, the SDI 4K Plus M.2 is the appropriate step up.
Software Compatibility
Compatible with vMix, Wirecast, OBS Studio, Adobe Premiere Pro, and FFmpeg. Supported on Windows 10, Windows 11, and Windows Server; Linux kernel 3.x and above; and macOS 10.14 and later.
StreamKit and UK Purchasing
StreamKit is an authorised UK Magewell reseller. The Eco Capture Dual SDI M.2 carries Magewell's three-year warranty. UK orders ship free. UK technical support is available for pre-sales specification advice, including confirming M.2 slot compatibility and PCIe lane availability on specific server and motherboard platforms.
KEY FEATURES
- 2�- 3G-SDI capture in M.2 (2280) form factor
- Max capture resolution: 1920�-1080p60
- FPGA hardware processing, scaling, deinterlacing, colour conversion
- Designed for embedded PCs and systems without standard PCIe slots
- Magewell SDK: DirectShow, V4L2
- Rated for continuous industrial operation
- Official UK stock from StreamKit
IDEAL FOR
Embedded capture systems
Install in an industrial PC or embedded computer for permanent capture in space-constrained environments.
Digital signage capture
Capture incoming video content in digital signage or display-processing systems.
Lecture capture appliances
Integrate into a compact lecture capture appliance without needing a standard PCIe workstation.
Broadcast edge devices
Capture broadcast-quality video inside a compact edge-compute or remote-production node.
