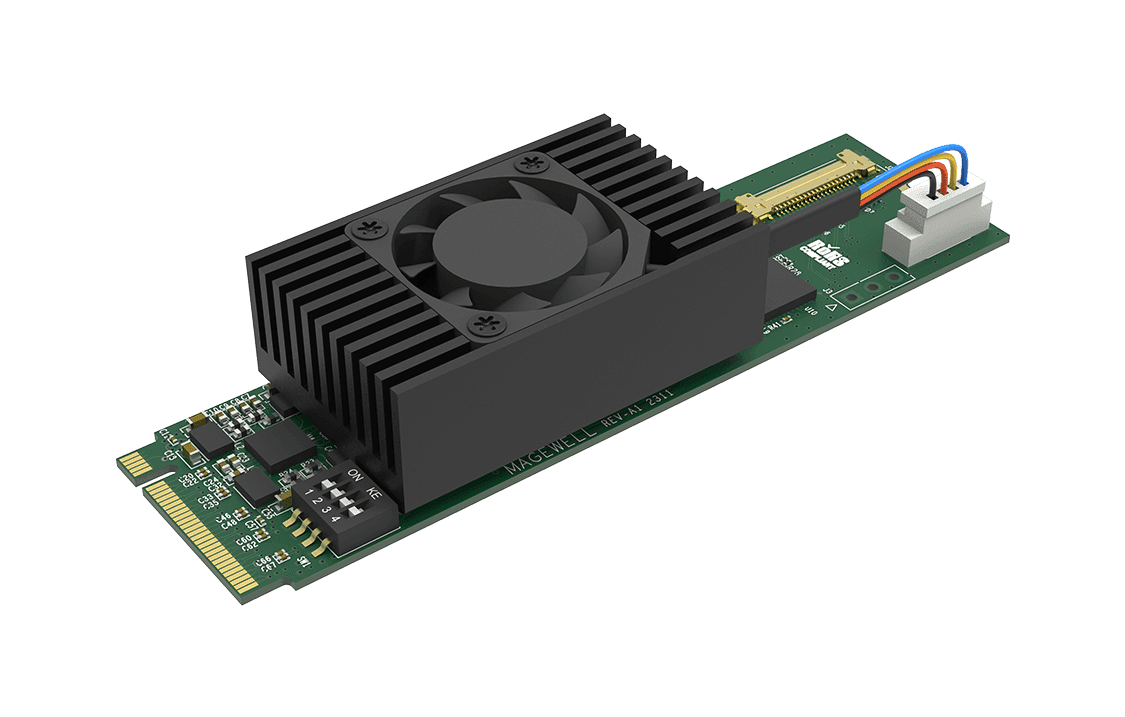

Magewell Eco Capture HDMI 4K Plus M.2

4K60 HDMI Capture with HDR and Loop-Through, from an M.2 Slot

The Magewell Eco Capture HDMI 4K Plus M.2 is the most capable single HDMI card in Magewell's M.2 capture range. It captures a single HDMI source at up to 3840x2160 at 60 frames per second, supports HDR, and includes an HDMI loop-through output, all from an M.2 slot on the motherboard. No PCIe slot required. At £570, it brings the full capability set of a high-end HDMI capture card into compact systems and PCIe-constrained builds where a standard PCIe card is not a physical option.

What the Plus Designation Means

In Magewell's naming convention, Plus on this card indicates three specific capabilities above the standard Eco Capture HDMI 4K M.2:

• 4K60: captures 3840x2160 at 60 frames per second, not the 4K30 of the standard card
• HDR support: handles high dynamic range content accurately from source to production software
• HDMI loop-through output: passes the source signal to a second HDMI output, enabling simultaneous capture and monitoring without an external splitter

Each of these is a meaningful upgrade for the specific workflows that require them.

Loop-Through from an M.2 Card

The loop-through output is notable specifically because this card achieves it in M.2 form factor. A PCIe capture card can route loop-through connections to an output bracket connector in a straightforward way. An M.2 card has no bracket: the physical interface is entirely different. Magewell has implemented a working HDMI loop-through on this card despite that constraint. In compact systems where you need to capture and simultaneously monitor a 4K source without adding an external HDMI splitter, this card is the only M.2 option that makes it possible.

Who This Card Is For

• Production engineers requiring 4K60 HDMI capture in compact systems with M.2 slots but no available PCIe expansion
• Operators who need to monitor a source simultaneously while capturing it, in hardware that cannot accommodate a PCIe capture card
• HDR production workflows that need accurate HDR ingest from compact or embedded hardware
• AV integrators specifying the highest-capability single HDMI M.2 capture card for compact rack or portable deployments

How It Compares to Other M.2 HDMI Options

The Eco Capture HDMI 4K M.2 (£276) captures 4K at 30fps, without HDR, without loop-through. The Eco Capture Dual HDMI M.2 (£276) provides two channels at 1080p60 for buyers who prioritise channel count over resolution. The HDMI 4K Plus M.2 at £570 is the right card when all three capabilities (4K60, HDR, loop-through) are required in M.2 form factor. It is also worth comparing with the Pro Capture HDMI 4K Plus PCIe card (£693): the PCIe card adds a 24/7 broadcast-grade rating and uses a PCIe x4 slot; the M.2 card costs less and installs in an M.2 slot for hardware where PCIe is not available.

Software Compatibility

Compatible with vMix, Wirecast, OBS Studio, Adobe Premiere Pro, and FFmpeg. Supported on Windows 10, Windows 11, and Windows Server; Linux kernel 3.x and above; and macOS 10.14 and later.

StreamKit and UK Purchasing

StreamKit is an authorised UK Magewell reseller. The Eco Capture HDMI 4K Plus M.2 carries Magewell's three-year warranty. UK orders ship free. UK technical support is available for pre-sales specification advice and post-purchase queries, including M.2 slot bandwidth verification for 4K60 operation on specific hardware platforms.
