IN THE BOX
- 1× Magewell USB Capture SDI Gen 2
- 1× USB 3.0 Cable (63cm)
- Quick Start Guide
Broadcast-Grade SDI Capture Made Simple

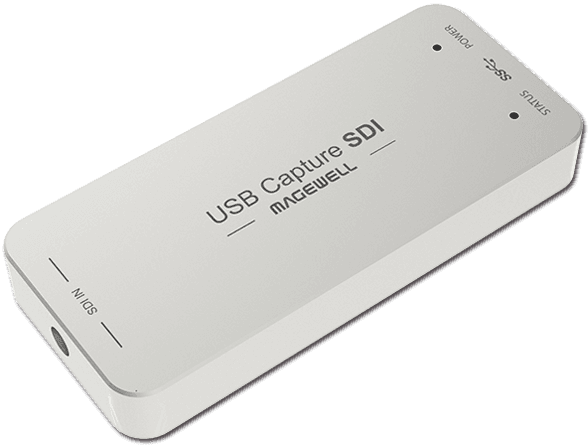

The Magewell USB Capture SDI Gen 2 brings professional broadcast video into the IT world. It captures SD, HD, and 3G-SDI signals with embedded audio and delivers them to your computer as a standard webcam source — no drivers needed.
Why Choose the USB Capture SDI Gen 2?
SDI is the backbone of professional broadcast for good reason: locking BNC connectors that won't accidentally pull out, electrical isolation that eliminates ground loops, and long cable runs that HDMI simply can't match.
This dongle features a dedicated SDI loop-through port, allowing you to monitor your camera feed on a local display while capturing simultaneously. Built-in cable equalisation handles SDI runs up to 150 metres for 3G-SDI — so even long cable pulls from stage to control room work flawlessly.
Built for the Field
Enclosed in a robust metal housing, the SDI Gen 2 is built to withstand the rigours of live event production and touring broadcast. USB bus-powered with no external adapter needed, it's the most portable way to get SDI into your laptop. Every unit from StreamKit ships with a 3-year warranty and free UK delivery.
KEY FEATURES
- 3G-SDI input with active loop-through output
- Cable equalisation for runs up to 150m (3G-SDI)
- FPGA-based onboard processing — zero CPU usage
- 16-channel 24-bit SDI embedded audio at 48kHz
- Captures up to 1080p at 60fps
- Driver-free on Windows, Mac, Linux, and Chrome OS
- Compact metal body — USB bus-powered
- Locking BNC connectors for secure connections
IDEAL FOR
Broadcast Production
Capture SDI feeds from professional cameras for live production, instant replay, or ISO recording. The loop-through means your video village stays connected.
Live Events
Ingest camera feeds at concerts, conferences, and sporting events. Locking BNC connectors and long cable support make it ideal for demanding event environments.
Houses of Worship
Capture SDI camera feeds for live streaming your services to YouTube or Facebook. One USB cable to your streaming computer — it's that simple.
Medical Imaging
Capture real-time SDI feeds from surgical cameras, endoscopes, and medical imaging equipment for recording, telemedicine, or training purposes.
Lecture Capture
Record presentations and lectures from SDI cameras in auditoriums and training facilities. The loop-through keeps the room's display connected.
