IN THE BOX
- 1× Magewell USB Capture SDI 4K Plus
- 1× USB 3.0 Cable
- Quick Start Guide
4K SDI Capture via USB

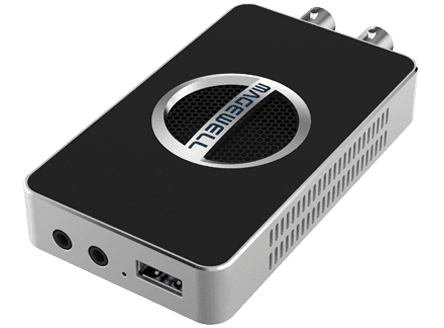

The Magewell USB Capture SDI 4K Plus bridges the gap between 4K broadcast infrastructure and computer-based production. It captures 6G-SDI signals at up to 4K 30fps with full embedded audio, and is fully backward compatible with 3G-SDI, HD-SDI, and SD-SDI sources.
Why Choose the SDI 4K Plus?
As broadcasters and production houses upgrade to 4K cameras, you need a capture device that can keep up. This dongle ingests 6G-SDI signals carrying 4K content and delivers them to your computer as a standard webcam feed — no drivers, no complex setup.
The SDI loop-through lets you pass the signal to a downstream monitor or recorder while capturing. The 3.5mm audio input lets you embed external audio from a mixing desk. Built-in cable equalisation supports 6G-SDI runs up to 75 metres, with longer distances at lower data rates.
Future-Proof Your Kit
Because it's backward compatible with every SDI standard from SD through to 6G, this one device works with your entire camera inventory — both current 4K models and older HD gear. StreamKit provides a 3-year warranty and free UK delivery on every unit.
KEY FEATURES
- 6G-SDI input — captures up to 4K at 30fps (4:2:2 10-bit)
- Backward compatible with 3G-SDI, HD-SDI, and SD-SDI
- Active SDI loop-through for monitoring
- 3.5mm line-level audio input for external audio embedding
- Cable equalisation up to 75m (6G-SDI), 150m (3G-SDI)
- FPGA-based onboard processing — zero CPU usage
- 16-channel SDI embedded audio at 48kHz
- Driver-free on Windows, Mac, Linux, and Chrome OS
IDEAL FOR
4K Broadcast Production
Capture feeds from 4K SDI cameras for live production, ISO recording, or post-production. The loop-through keeps your monitoring chain connected.
Cinema & Film
Ingest 4K SDI output from cinema cameras for on-set monitoring, dailies capture, or remote viewing. Professional-grade signal handling in a portable form factor.
4K Medical Imaging
Capture ultra-high-resolution feeds from 4K surgical cameras and diagnostic equipment via SDI. The loop-through maintains the clinical display connection.
Live Events
Capture 4K SDI camera feeds at major events and venues upgrading to UHD. Backward compatible with all your existing HD-SDI cameras too.
Scientific & Research
Record 4K SDI output from microscopes, telescopes, and specialised scientific imaging equipment for analysis, publication, or archiving.
