IN THE BOX
- 1× Magewell USB Capture SDI Plus
- 1× USB 3.0 Cable
- Quick Start Guide
SDI Capture With External Audio Embedding

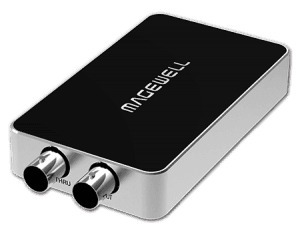

The Magewell USB Capture SDI Plus takes the proven SDI Gen 2 and adds the features broadcast professionals need most: an active SDI loop-through for monitoring and a 3.5mm line-level audio input for embedding external audio sources into the capture stream.
Why Choose the SDI Plus?
In live event production, you often need to combine video from an SDI camera with audio from a separate mixing desk. The SDI Plus solves this by letting you embed line-level audio directly into the captured stream — no external embedder or separate audio interface required.
The active loop-through lets you daisy-chain to a monitor, recorder, or downstream device while capturing simultaneously. Built-in cable equalisation handles SDI runs up to 150 metres for 3G-SDI, and the FPGA chip processes everything onboard so your CPU stays free for encoding.
Built for Broadcast
Enclosed in a rugged metal housing with professional BNC connectors, the SDI Plus is built for the demanding world of live broadcast and touring production. Every unit from StreamKit ships with a 3-year warranty and free UK delivery.
KEY FEATURES
- 3G-SDI input with active loop-through output
- 3.5mm line-level audio input for external audio embedding
- Cable equalisation for runs up to 150m (3G-SDI)
- FPGA-based onboard processing — zero CPU usage
- 16-channel 24-bit SDI embedded audio at 48kHz
- Captures up to 1080p at 60fps
- Driver-free on Windows, Mac, Linux, and Chrome OS
- Locking BNC connectors for secure connections
IDEAL FOR
Live Event Webcasting
Capture SDI camera feeds with mixed audio from the venue's soundboard via the line-in. One device gives you perfectly synced video and audio for your webcast.
Broadcast with External Audio
Embed audio from a mixing desk, wireless receiver, or audio interface directly into the captured video stream. No separate audio capture card needed.
Concert & Conference Production
Ingest professional camera feeds at live events. The loop-through keeps the video village connected while the line-in embeds the house audio mix.
Houses of Worship
Capture your camera's SDI feed and embed the audio from your church's sound system in one step. Stream to YouTube or Facebook with perfectly synced audio and video.
Multi-Camera Production
Use multiple SDI Plus units to capture ISO feeds from each camera, daisy-chaining via loop-through to your live switcher.
