IN THE BOX
- 1�- Magewell Pro Convert HDMI Plus Module blade module
- Quick start guide

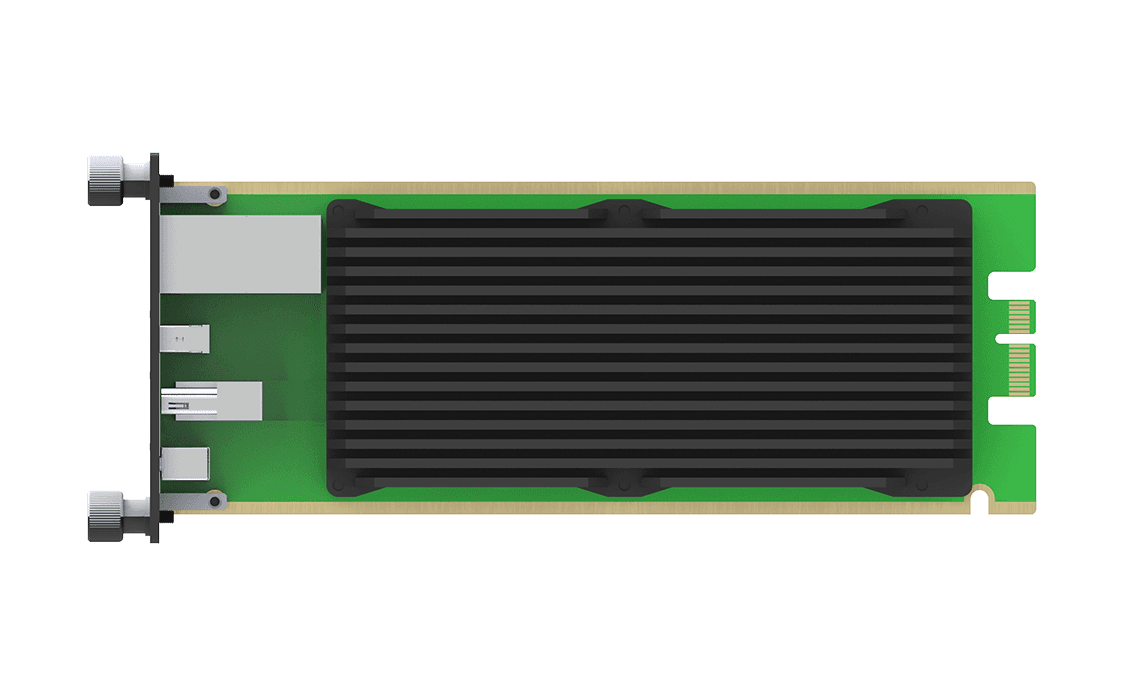

Magewell Pro Convert HDMI Plus Module: HD NDI to HDMI Conversion for Modator Chassis
The Pro Convert HDMI Plus Module is the HD-tier NDI-to-HDMI conversion module for the Magewell Modator Chassis 2U. It receives NDI video streams up to 1080p from the network and outputs them as HDMI video, slotting into the same chassis as all other Modator modules. At £434 per module, it is the most cost-accessible conversion option in the Magewell Modator range for HD workflows and the right choice for the majority of monitoring and display positions in most facilities.
What This Module Does
Installed in a Modator Chassis 2U, the HDMI Plus module joins the network and can be configured to receive any NDI source visible on that network. It decodes the NDI stream and outputs HD HDMI video in real time. The HDMI output connects to monitors, displays, switchers, or any other HDMI-capable device at that rack position.
This module is functionally equivalent to the standalone Pro Convert HDMI Plus but housed in the module format that allows up to eight units per 2U chassis, sharing power, cooling, and network management across all installed channels.
When HD Is the Right Specification
Not every display in a facility requires 4K resolution. Confidence monitors, tally displays, director screens, secondary programme monitors, green room screens, and the majority of IMAG applications operate correctly at 1080p HD. Deploying 4K modules at these positions adds cost without delivering meaningful benefit to the people using those screens.
The HDMI Plus module is the practical and cost-appropriate choice for the majority of conversion channels in most broadcast, live production, and AV installations. Reserve the 4K Plus module for positions where resolution genuinely matters: main programme displays, large format screens, and critical viewing positions.
Cost Efficiency in Multi-Channel Deployments
At £434 versus £771 for the 4K Plus module, the HDMI Plus module saves £337 per channel for HD applications. In a facility deploying six conversion channels for HD monitoring and two for large-format 4K displays, specifying HDMI Plus where appropriate and 4K Plus only where genuinely needed results in significant total project savings, all within the same Modator chassis with no additional management overhead.
Who Uses This Module
- Broadcast facilities distributing HD NDI sources to multiple monitoring positions across studios and galleries
- Live production venues feeding HDMI confidence monitors at stage and front-of-house positions from an NDI production network
- Corporate AV integrators deploying multi-room HDMI display systems based on NDI distribution, where HD is sufficient for all or most screens
- Houses of worship and conference facilities running NDI across a network and feeding screens throughout the building
- Rental and staging companies building flexible, multi-channel conversion racks where per-channel cost matters across repeated deployments
Buying from StreamKit
- Authorised UK Magewell reseller
- 3-year manufacturer warranty included
- Free delivery to UK addresses
- UK-based technical support
The Modator Chassis 2U is sold separately. This listing covers the module only.
KEY FEATURES
- Encodes HDMI 4K60 (4:2:0) input to full-bandwidth NDI.
- Blade form factor, installs in Magewell Modator 2U chassis
- Centrally managed via Magewell Control Hub or chassis web UI
- Shares chassis power and cooling, no external connections needed
- Magewell quality engineering for 24/7 operation
- Official UK stock from StreamKit
IDEAL FOR
Broadcast facility
Add IP conversion capacity to your Modator chassis as your workflow grows.
Live production
Flexible encoder or decoder capacity within the centrally managed Modator system.
AV-over-IP
Extend IP conversion nodes by adding the conversion type you need.
Playout and post
Dedicated encode or decode capacity for playout and distribution workflows.
