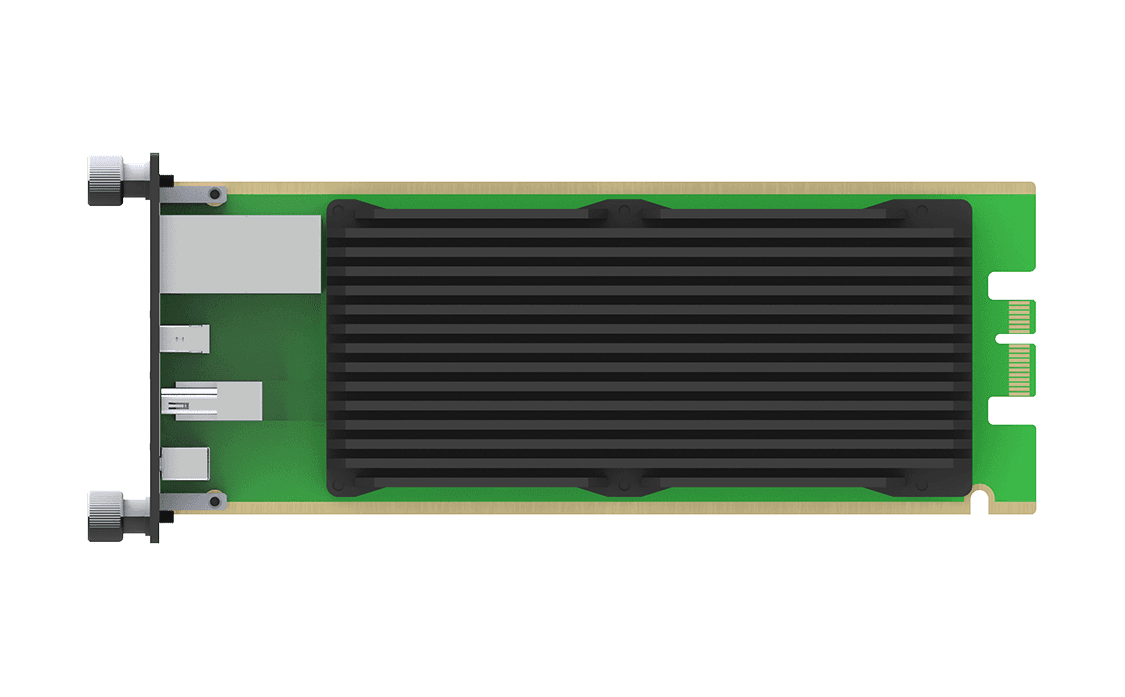

Magewell Pro Convert for NDI to HDMI Module

Magewell Pro Convert NDI to HDMI Module: NDI Receiving and HDMI Output for Modator Chassis

The Pro Convert NDI to HDMI Module is the module version of Magewell's popular standalone NDI-to-HDMI converter, designed to install inside the Magewell Modator Chassis 2U. It receives NDI video streams from your network and outputs them as HDMI video, with up to eight modules running simultaneously in a single 2U rack slot.

At £332 per module, it delivers the same core functionality as the standalone Pro Convert NDI to HDMI in a form factor built for facilities deploying multiple conversion channels from a shared chassis infrastructure.

What This Module Does

Install the module into an available slot in a Modator Chassis 2U and connect the chassis to your network. The module appears on the network and can be configured via the browser interface to receive a specific NDI source. It decodes the NDI stream and outputs HDMI video on its rear panel connector, which connects directly to any HDMI-equipped display, monitor, switcher, or downstream device.

NDI (Network Device Interface) is a high-bandwidth IP video protocol developed by NewTek and widely adopted across broadcast, live production, and AV integration. It carries video, audio, and metadata over a standard network and is supported by a large ecosystem of cameras, software production tools, switchers, and encoders. If your facility is built around NDI, the Pro Convert NDI to HDMI module is a natural fit wherever you need an HDMI output from that network.

Why Use the Module Version

For a single NDI-to-HDMI conversion point, the standalone Pro Convert NDI to HDMI is the straightforward choice. When you need four or more conversion channels, the economics and logistics of the module version in a Modator chassis become clearly preferable. A fully populated chassis with eight modules occupies 2U of rack space, compared to the eight separate rack units, power supplies, and connection points that the equivalent standalone deployment would require.

The shared chassis infrastructure also simplifies ongoing management. All modules in the chassis share a network connection and are managed through the same interface, reducing the number of individually logged-in device interfaces an operator needs to maintain.

Who Uses This Module

• Broadcast facilities distributing NDI sources to multiple HDMI monitor positions, director screens, or confidence displays from a centralised rack
• Live production venues driving HDMI screens at multiple positions from a central NDI-based production network
• Corporate AV integrators installing multi-room or multi-screen systems where NDI is the distribution standard and HDMI is the screen interface
• Houses of worship and conference facilities where several HDMI screens across different areas must be fed from NDI sources on a single network
• Universities and education organisations distributing lecture capture or live production feeds to HDMI displays across campus buildings

Buying from StreamKit

• Authorised UK Magewell reseller
• 3-year manufacturer warranty included
• Free delivery to UK addresses
• UK-based technical support

The Modator Chassis 2U is sold separately. This listing covers the module only.
